Environment Friendly Industrial Electric Vacuum Heat Treatment Furnace For Glass Annealing

1 Set
MOQ
$10,000.00(>=1 Sets)
τιμή
Environment Friendly Industrial Electric Vacuum Heat Treatment Furnace For Glass Annealing
Χαρακτηριστικά Εκθεσιακός χώρος Περιγραφή προϊόντων Ζητήστε ένα απόσπασμα
Χαρακτηριστικά
Προδιαγραφές
Condition: New
Type: Resistance Furnace
Usage: Heat Treatment Furnace
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Hot Product 2021
Warranty of core components: 1 Year
Core Components: PLC
Voltage: 110V/220V/380V
Dimension(L*W*H): as request
Weight (T): 0.3 T
Power (kW): 6
Warranty: 1 Year
Key Selling Points: Accurate temperature control
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: None
Product name: vacuum chamber furnace
Max temperature: 500C - 2300C (custom Made)
Temperature Accuracy: +/-1℃
Power Source: Electric
Application: Tempering
Feature: Environmentally Friendly
Other name: annealing furnace
Use: Melting Glass
Vacuum system: Vacuum Pump Units
Heating Rate: 0-20 /min
Βασικές πληροφορίες
Πληρωμής & Αποστολής Όροι
Packaging Details: foam board inside, export plywood case outside
Supply Ability: 10000 Set/Sets per Month
Περιγραφή προϊόντων
Product Description

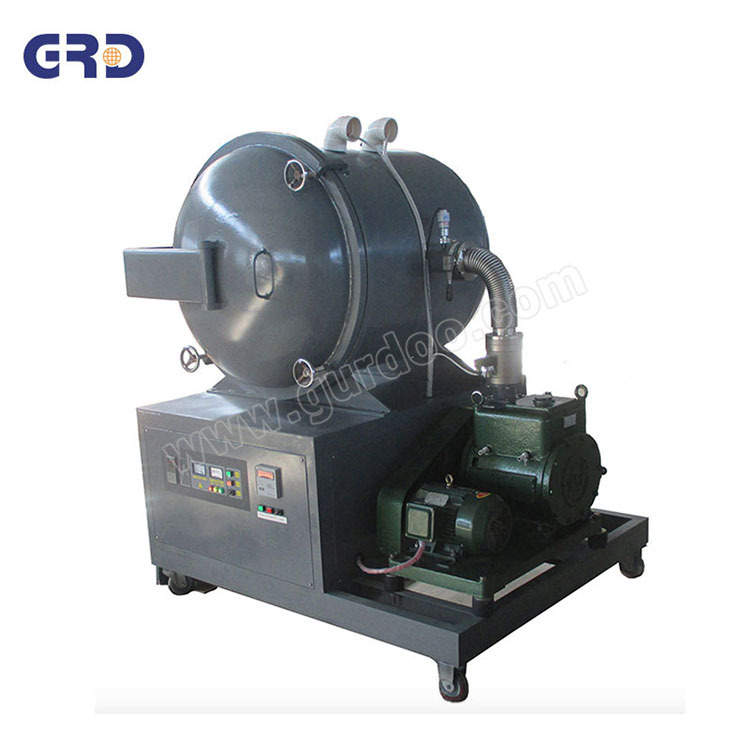

Industrial electric vacuum heat treatment furnace for glass annealing
Muffle furnace has the advantages of fast heating, energy saving, high accuracy of controlling the temperature, reliable heat keeping, auto heating and cooling by programming and a furnace temperature nearing to the indoor.
Technical data of vacuum heat treatment furnace
1. Excellent temperature uniformity
10~150mm
2. PID Programmable Temperature Controller
2500mm
3. 30 programmable segments
4. High-quality heating elements
5~100mm
5. High energy efficiency
2500mm
6. Safety interlock system
7. Overheat protection
8. Power failure protection

  • Application

Vacuum heat treatment furnace is widely used in the laboratory and manufacture of the field of pottery, chemical industry, metallurgy, and glass industries, new material developing, machinery, fire-proof material, architecture, special material and etc.
Detailed Images
Our furnaces contain muffle furnace, laboratory furnace, box furnace, chamber furnace, crucible furnace, atmosphere furnace, bottom (top) Loading furnace, high temperature furnace, melting furnace, resistance furnace, industrial furnace, electric furnace, sintering furnace, dental furnace, etc;
Tube furnace, double (multi) zones tube furnace, multi-position rotary tube furnace, vertical tube furnace, etc.;
Vacuum furnace, vacuum brazing furnace, vacuum induction melting furnace, vacuum heat treatment furnace, etc.
Size Information
Item
vacuum heat treatment furnace
Max. temperature
1200℃ (<2hour)
1400℃ (<2hour)
1700℃ (<2hour)
Working temperature
1100℃
1300℃
1600℃
 Vacuum degree
100Pa, 10Pa, 1Pa, 10*-1pa, 10*-3pa optional
Working atmosphere
Vacuum, Nitrogen, Argon etc. inert gas
Temperature accuracy
±1℃
Heating rate
0-20℃ /min
Thermocouple
K type
S type
B type
Heating element
Heating wire
SiC heating element
MoSi2 heating element
Furnace chamber
ceramic fiber board
Furnace structure
Double layer steel casing with dual cooling fan, surface temperature below 60C
Furnace door
Front-side open,  power cutting off when furnace door open
Working voltage
110V, 220V, 240V or 380V, 50HZ or 60HZ

Stander chamber size (mm)
 100x100x100 120x120x130 150x150x150 150x150x200
200x200x200 200x200x300 250x250x300 300x300x300
300x300x400 350x350x500 400x400x400 450x450x450
500x500x500 600x600x600 800x800x800 900x900x900
Note: the chamber size can be customized
Related Products
Packing&Shipping
Vacuum heat treatment furnace is packed in export standard plywood case outside, lined with sponge and foam inside. It is also individually packed with buffer material to ensure the safety of the goods.
The goods will be shipped by air, by sea, by railway or by express delivery/courier like DHL, FedEx, TNT, UPS, EMS and so on.
Company Introduction
Henan Gurdoo Industry Co.,Ltd. is founded by engineers who have more than 20 years’ experience in research and production, which is specialized in manufacturing SiC heaters, MoSi2 heating elements, alumina ceramics, silicon carbide refractory, high temperature furnace and also can supply molybdenum and tungsten products, ceramic fiber insulation and quartz glass tube, etc.
Focusing on professional high temperature working field, we have the stable and efficient industrial production with ISO9001, CE, GB, CO, FTA certifications etc. All material & components adopt the qualified materials. 100% quality check and durable testing for every product before shipment will supply you high quality products and VIP service.
We have a well team-conscious, the ability of communication and coordination, work hard, meticulous and patience can afford the pressure of the work.
We provide cost efficient quality products for our customers, assisting them to gain competitive advantages are our major focus.
After Sales Service
Our advantages
1.Any inquiries will be replied professionally within 24hours.
2.Technical staff available for the technical assistance anytime.
3. Professional customization of furnace and project is offered.
4.Small MOQ, Fast delivery and competitive freight.
5. Also can help to purchase other products if you needed.
FAQ
Q1. What information should we supply to get a quote?
Please offer the specification of vacuum heat treatment furnace, such as type, dimension, working temperature, quantity, application etc.

Q2. What type or material should we choose?
If you are not sure about the type/material needed, please kindly supply more details about working condition and application. Then our technical staff will check and offer you the most suitable type or material.

Q3. How can we place an order?
You can contact any sale person by email, trade manager, Skype, WhatsApp, WeChat and so on.
And more details of the products you supplied will be helpful to get the targeted responses.

Q4. How long our order can be finished?
A mass of semi-finished products and standard sizes are available in stock, and 10-30days for bulk production or customized products.

Q5. What do you do on quality control?
For every batch, each step and finished products will be inspected when producing by QC department.

Q6. How can we get the sample?
Free samples can be supplied after communication, but freight is for your account.

Q7. Can you accept OEM/ODM?
Yes, your goods will be produced exactly according to your drawings.
